Marine - Autopilot
Product Overview
Our advanced Marine Autopilot system is designed for precise vessel control and navigation. Perfect for both commercial and recreational vessels, it offers reliable steering control and course maintenance in various sea conditions.
Key Features
- ✓High-resolution color display with intuitive interface
- ✓Multiple steering modes for various navigation requirements
- ✓Advanced course correction algorithms
- ✓Compatible with hydraulic and solenoid valve steering systems
- ✓IP65 waterproof rating for marine environment
- ✓Easy integration with existing navigation systems
Technical Specifications

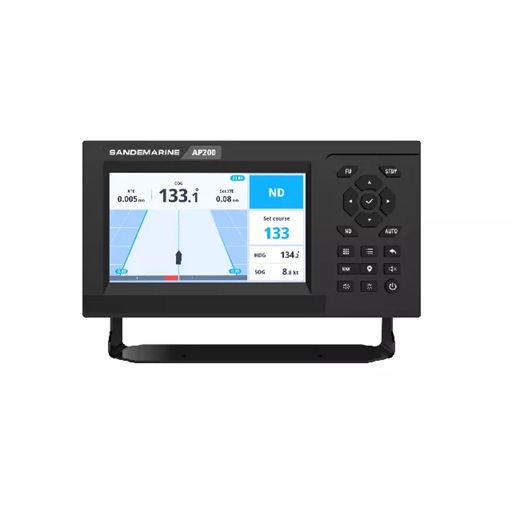

Display unit
Screen
7 inch
Displayable area
153.8×85.6mm
Brightness
800 nits (Max)
Pixel
800×480
Environment
Temperature
-15℃~55℃
Waterproof
IP65
Power
Power supply
9-36V DC
Installation
Installation
Desktop installation, Hanging installation, Embedded installation
Port
NMEA 0183
9 pin port(Compass): GNSS data/compass data input
6 pin port(Data/Rudder): GNSS data/compass data/SM rudder angle input
GNSS data/compass data output
Function
Functional module
Autopilot + GNSS + Compass
Autopilot Mode
STBY, AUTO, FU, No-drift (ND), NAV
Driven system
Hydraulic boat, Solenoid valve boat
Installation & Support
Professional installation service available. Our team provides comprehensive support for setup, calibration, and maintenance. Contact us for detailed information about compatibility with your vessel.
